Zelo Linea Pro surface aluminium LED profile for double LED strip

SKU: MLEDP 5.1 + MCOVER 2.1
In stock
67,50 € Barra 3 m
CODICE: MLEDP 5.1 + MCOVER 2.1
In stock
"Zelo" profile colour
"Duo" cover colour
Bar length

Hai scelto: Silver (anodized) / Milky (PMMA) / 3 m

Trustpilot TrustScore 4.8/5 467 recensioni

Surface profile, designed for lighting systems using two strips.

Included in the kit: aluminium profile + selected cover

Accessories sold separately

This profile is used to illuminate:

  • linear pendant lamps
  • lighting systems with double LED strip
  • ceilings and walls in offices and residences
  • minimal main lighting
  • decorative lighting in domestic and commercial spaces
  • continuous lines of high-intensity light

Cover information:

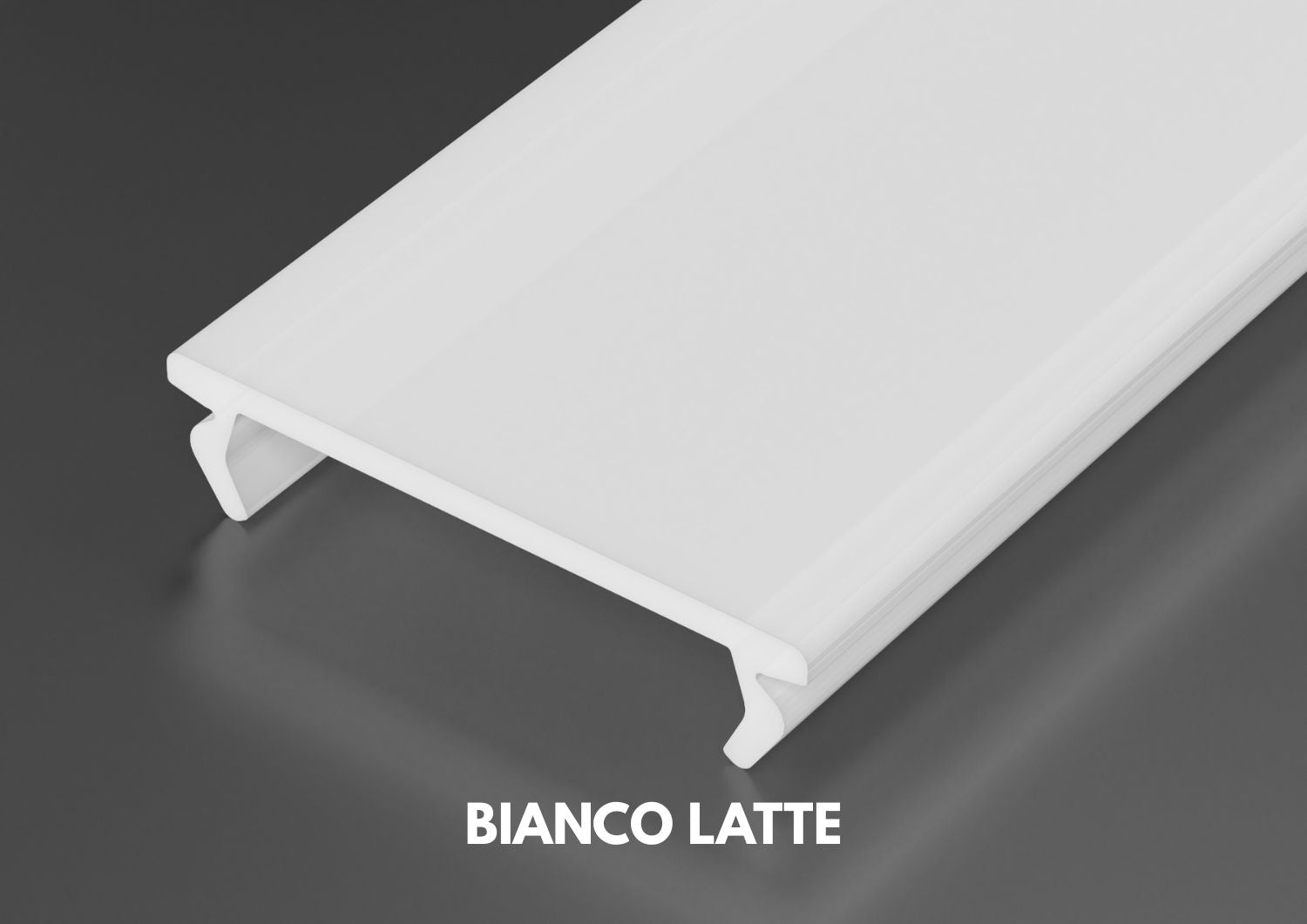

  • Milky (PMMA) → soft and diffused light, hides LED points, transmittance ~50%

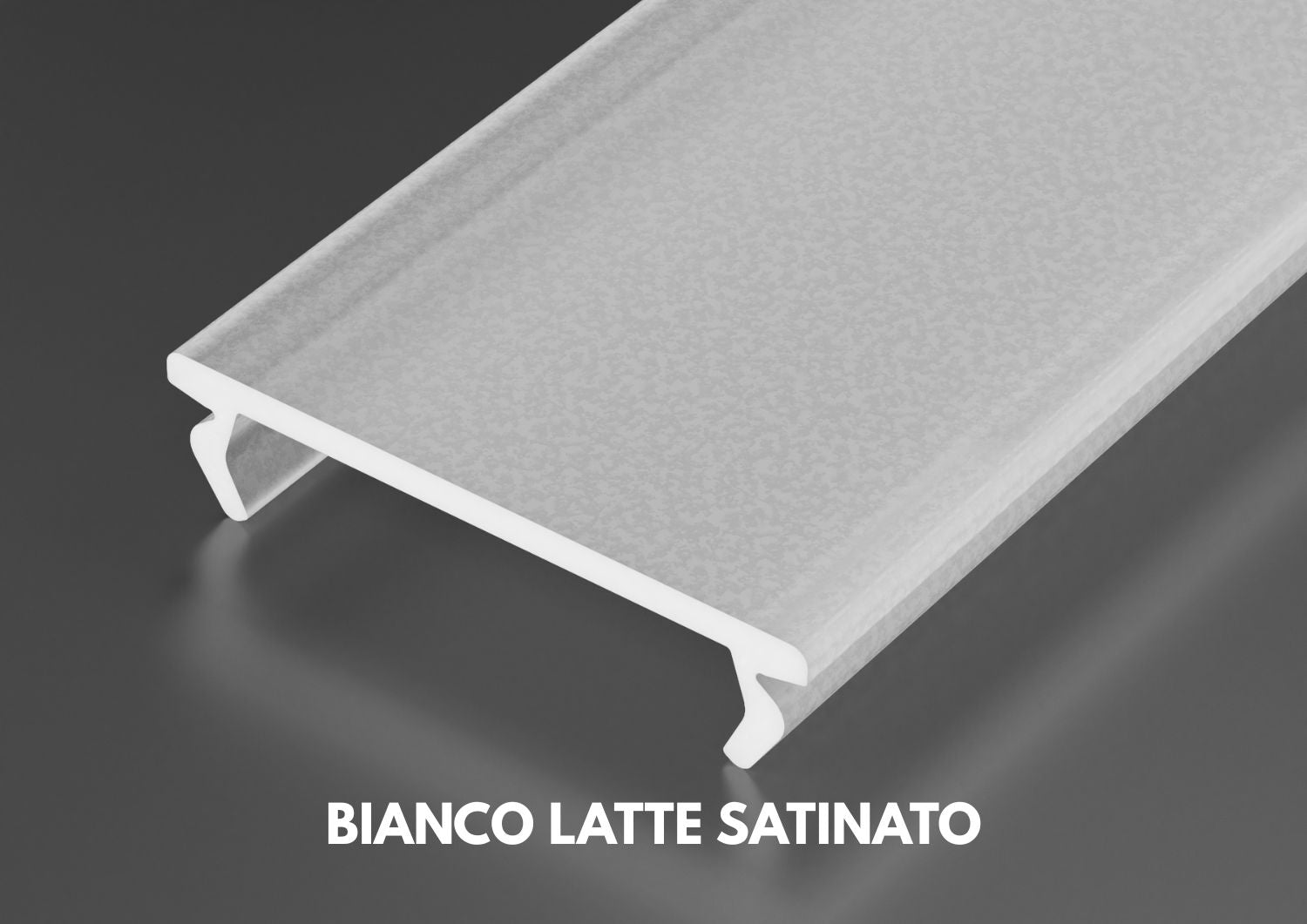

  • Frosted milky (PMMA) → intense satin light, reduces glare, transmittance ~75-83%
  • Black (PMMA) → black profile invisible when off, black light line when on, transmittance ~23-25%

The Zelo surface aluminium LED profile from the Pro Line is designed for applications that require more intense, continuous and uniform lighting. Its structure allows two LED strips to be installed, increasing light output and helping to create a more homogeneous diffusion.

It works well in kitchens, shops, display windows and exhibition spaces where impactful lighting scenes are required while maintaining a minimal and discreet design. Before purchasing, it is useful to check the installation point, the available space, the profile colour, the desired cover and compatibility with the LED strips to be installed.
  • SKU MLEDP 5.1 + MCOVER 2.1
  • Technical Data Sheet Download

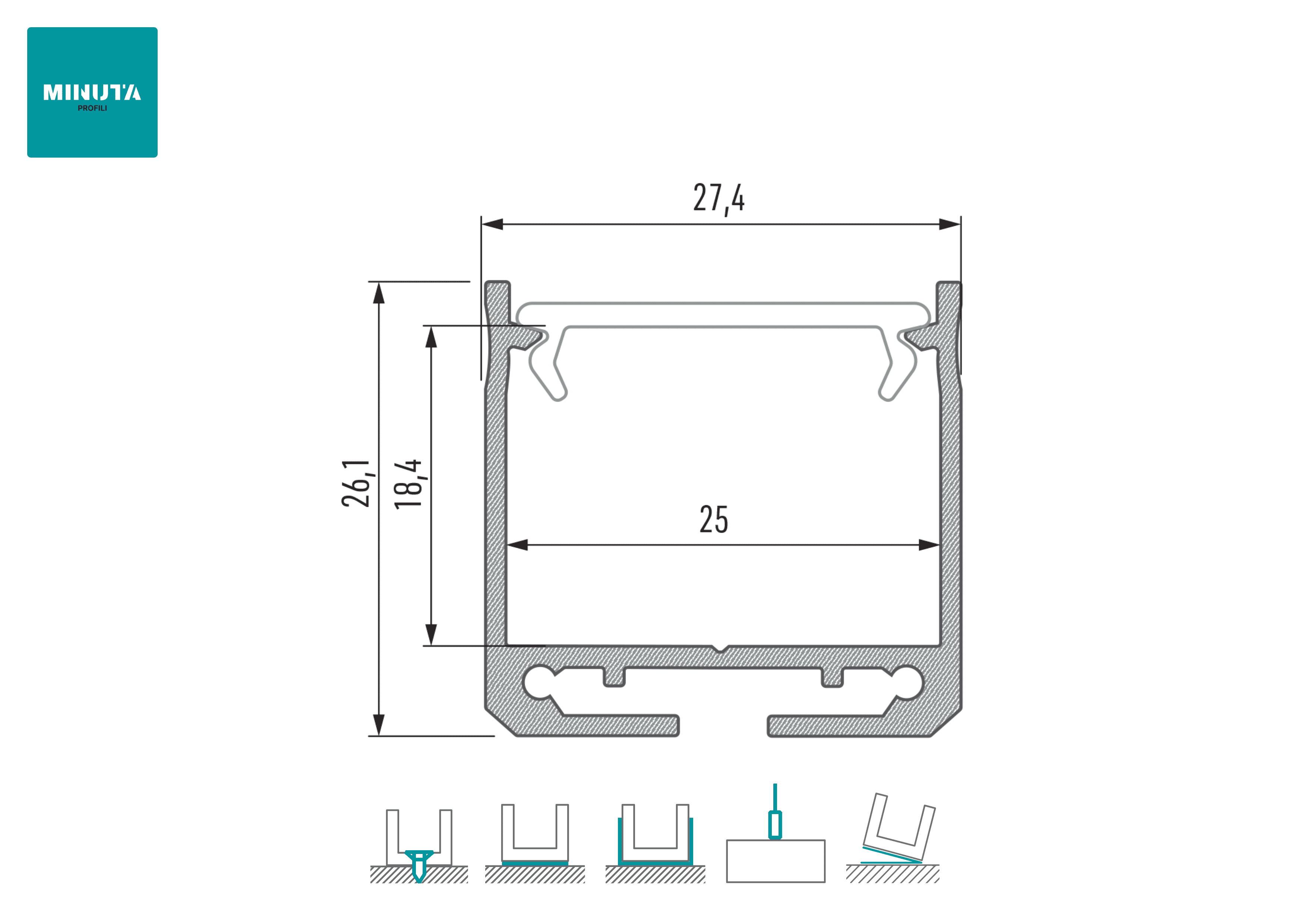

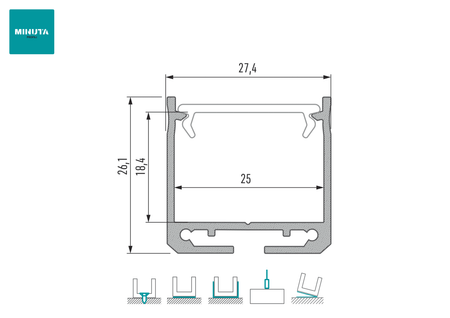

Material: aluminium
Space for LED strip: 2 x 12 mm

Simple assembly, precise result

Follow the installation steps to correctly lay the profile and achieve a clean, stable, and professional finish.

Step 1

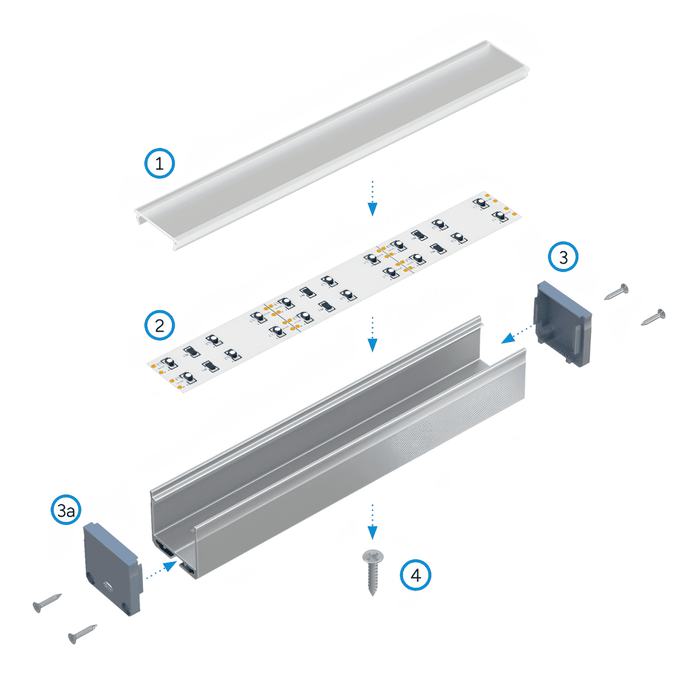

Schema di assemblaggio degli elementi del sistema di illuminazione con profilo Zelo e (1) cover Duo, (2) strip LED, (3)(3a) tappo con foro di spinta e (4) vite di montaggio.

Step 2

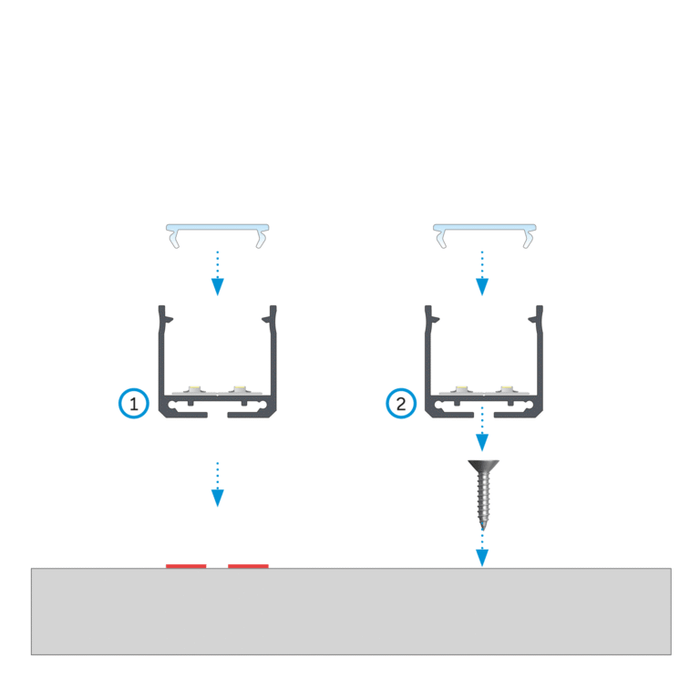

Istruzioni di assemblaggio del profilo Zelo con cover Duo mediante (1) nastro biadesivo e (2) vite di montaggio.

Step 3

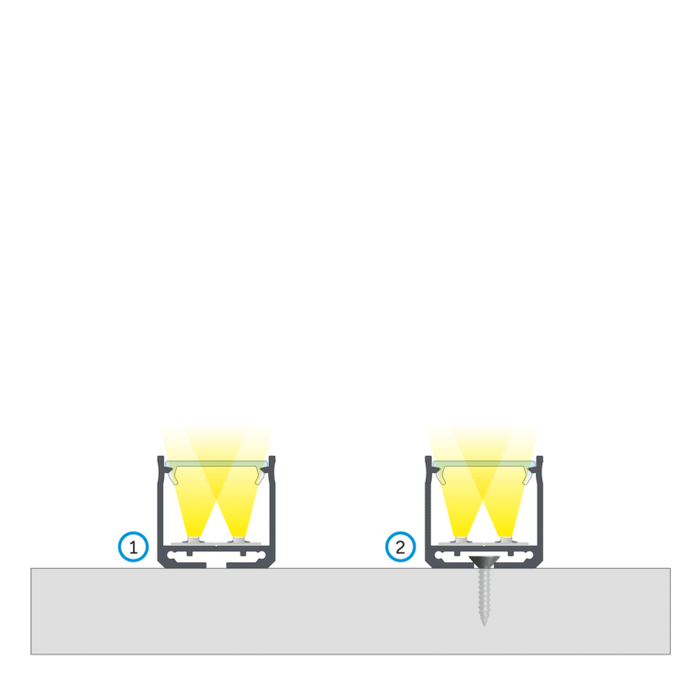

Risultato finale dell’assemblaggio del profilo Zelo con cover Duo mediante (1) nastro biadesivo e (2) vite di montaggio.
